Counter-current swimming lane, 59 jets, 3 semi-reclined places and 2 standing places in a 385 × 225 cm pool.
Delivery by crane truck and installation subject to access.

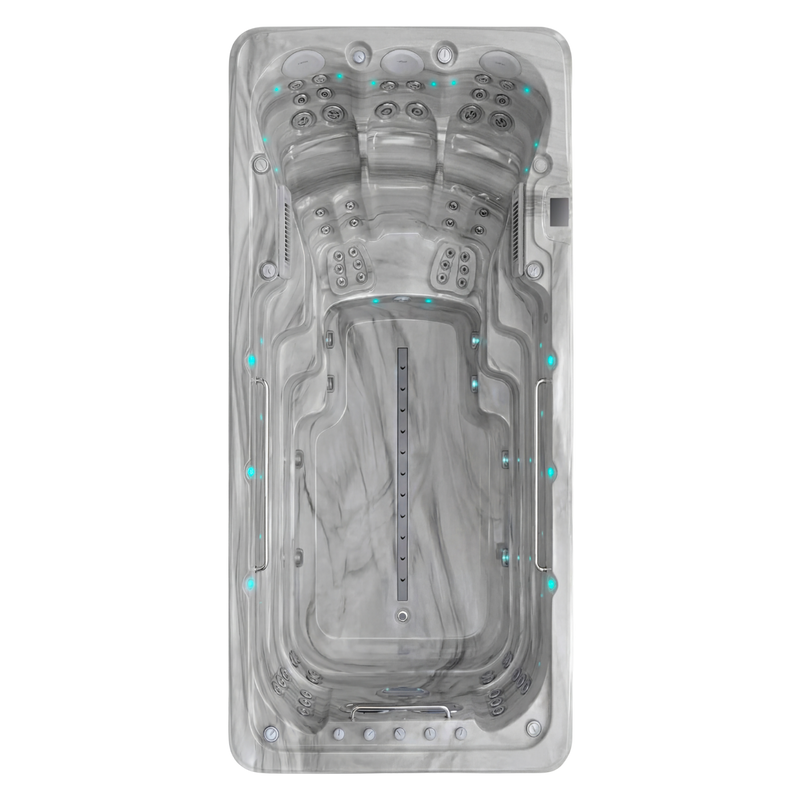

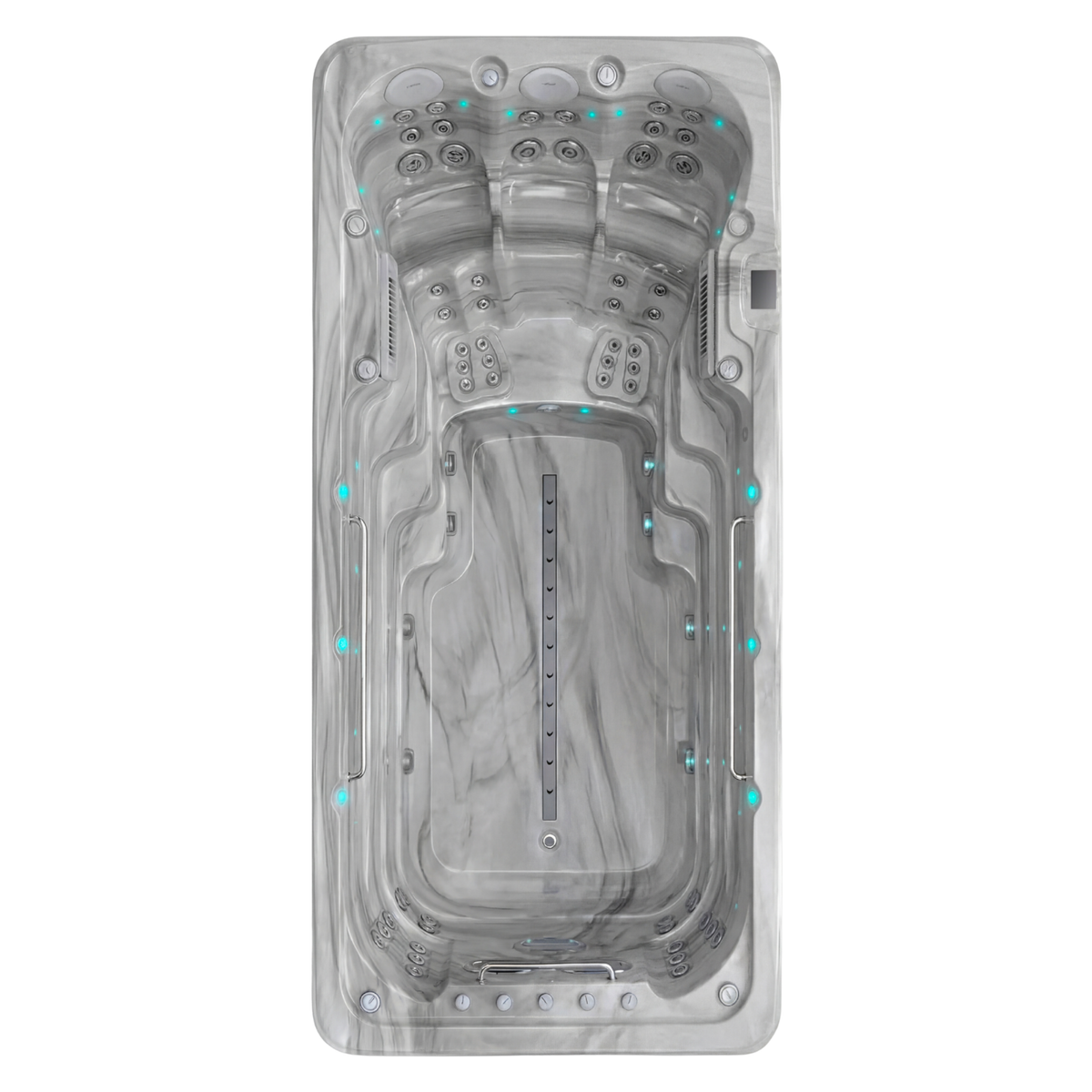

Studio view of the exact model in its Odyssey finish. Below, explore the pool zone by zone: swimming, massage, access.

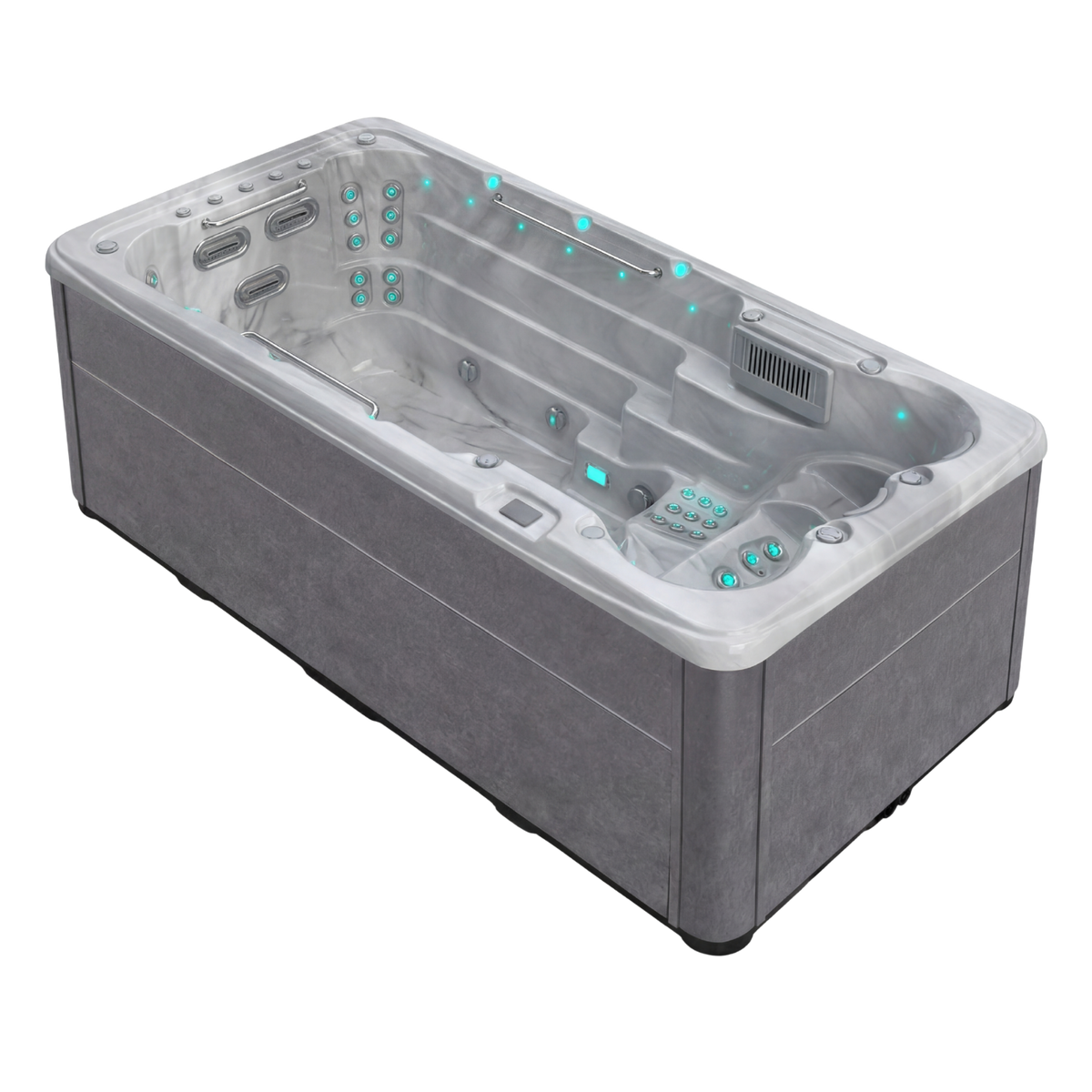

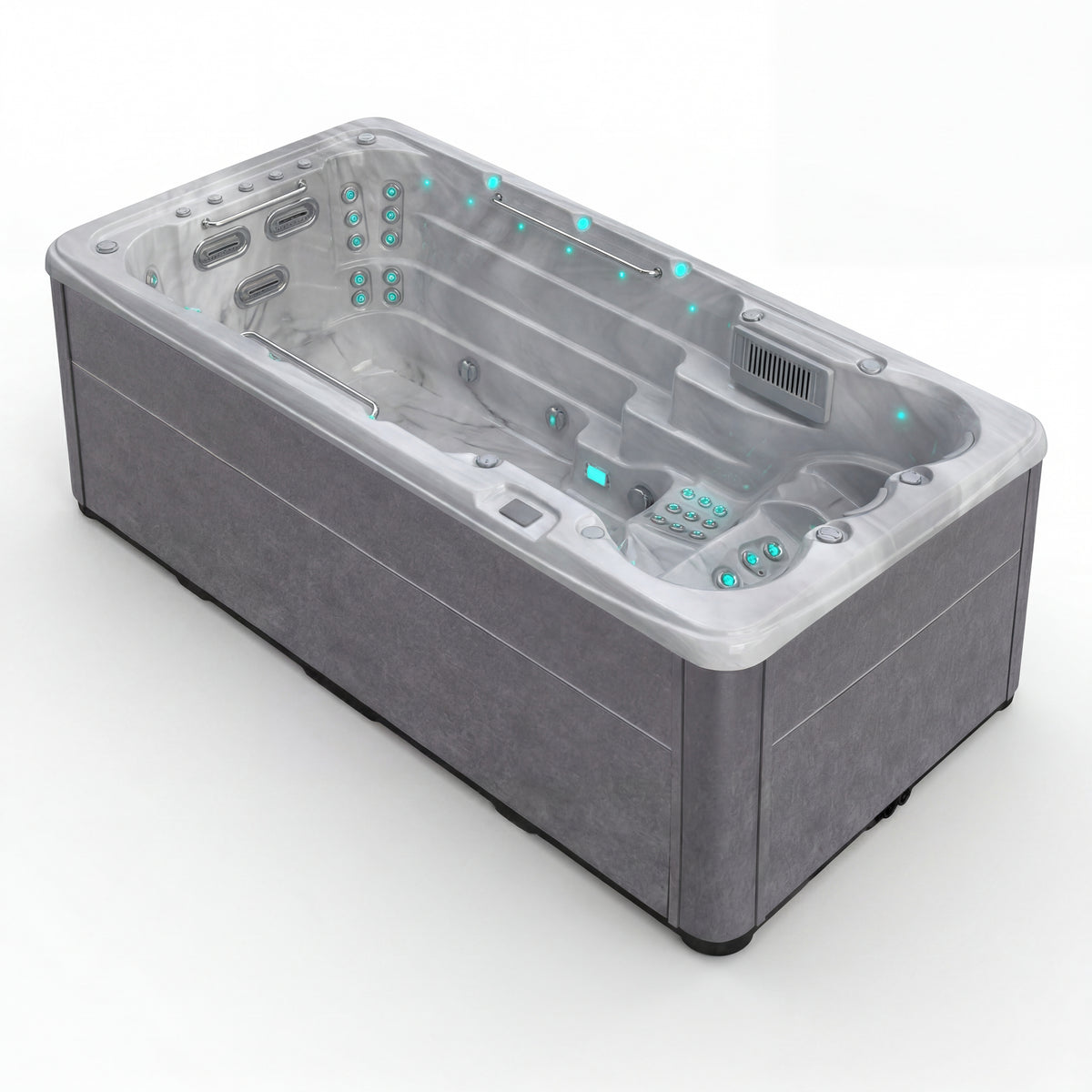

SwimFlow Odyssey, three-quarter view
Counter-current swimming
A 3,85 m pool, three 3 HP swim pumps and a 3 kW heater, supplied with its cover: SwimFlow turns the terrace into a space for training and relaxation.
SwimFlow Odyssey · in its setting
The difference it makes every day
01 — Swim
Swimming
3 pumps of 3 HP
Pool
3,85 m long
02 — Recover
Jets
59 hydromassage jets
Massage
Dedicated 3 HP pump
03 — Get together
Seats
3 semi-reclined + 2 standing
Pool
385 × 225 cm
04 — All year round
Heating
3 kW heater
Cover
Supplied with the hot tub
Figures from the SwimFlow technical sheet: 3 swim pumps of 3 HP, 59 jets, 3 semi-reclined places and 2 standing places, 3 kW heater, 385 × 225 × 120 cm pool.
SwimFlow Odyssey in its setting: swimming, pool details, a winter garden and two ways to integrate it into the terrace.
Swim against the current in the calm of a garden.
Odyssey acrylic and the pool's equipment, in a flowering garden.
See the benefits
SwimFlow Odyssey filled with water in a frosty garden.
Explore the product
Positioned on its slab, with NodoTech cladding visible.
Compare installations
Integrated into a stone terrace.

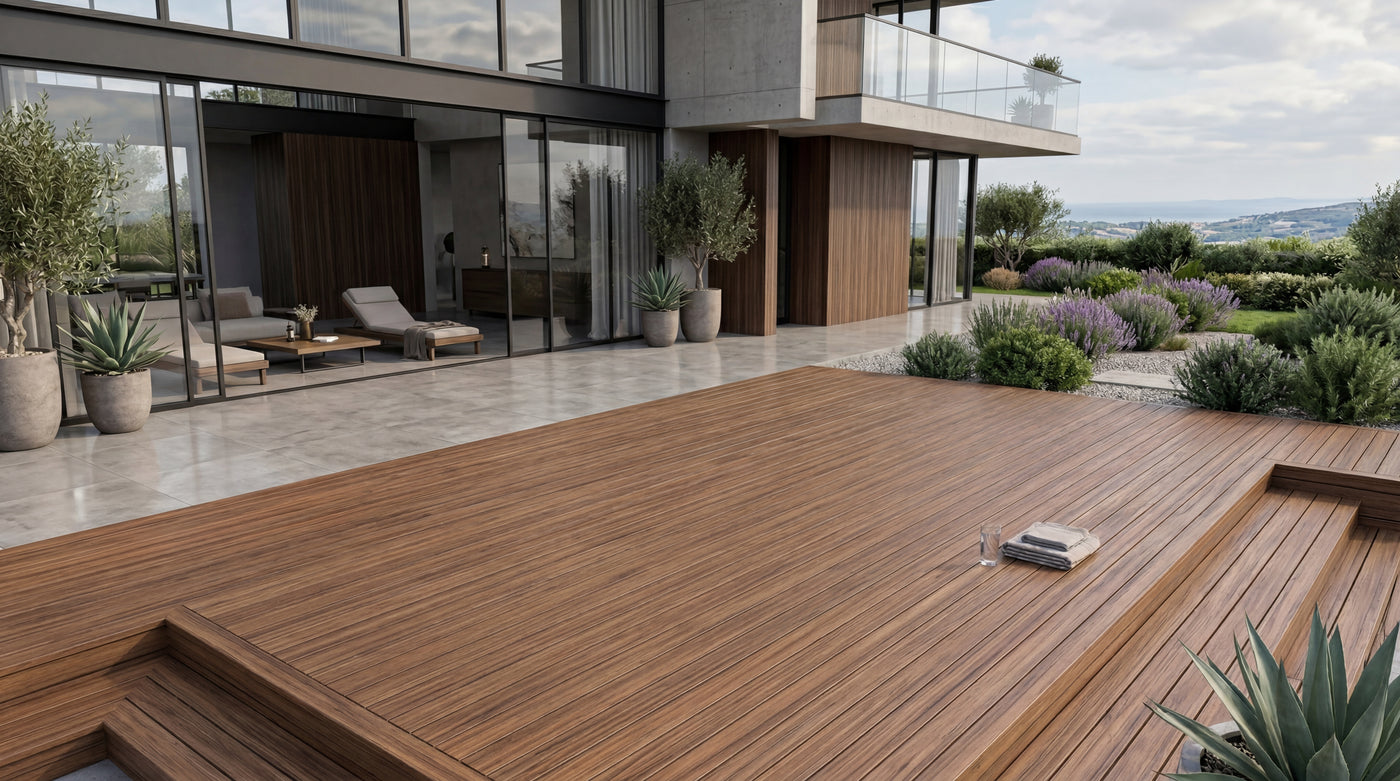

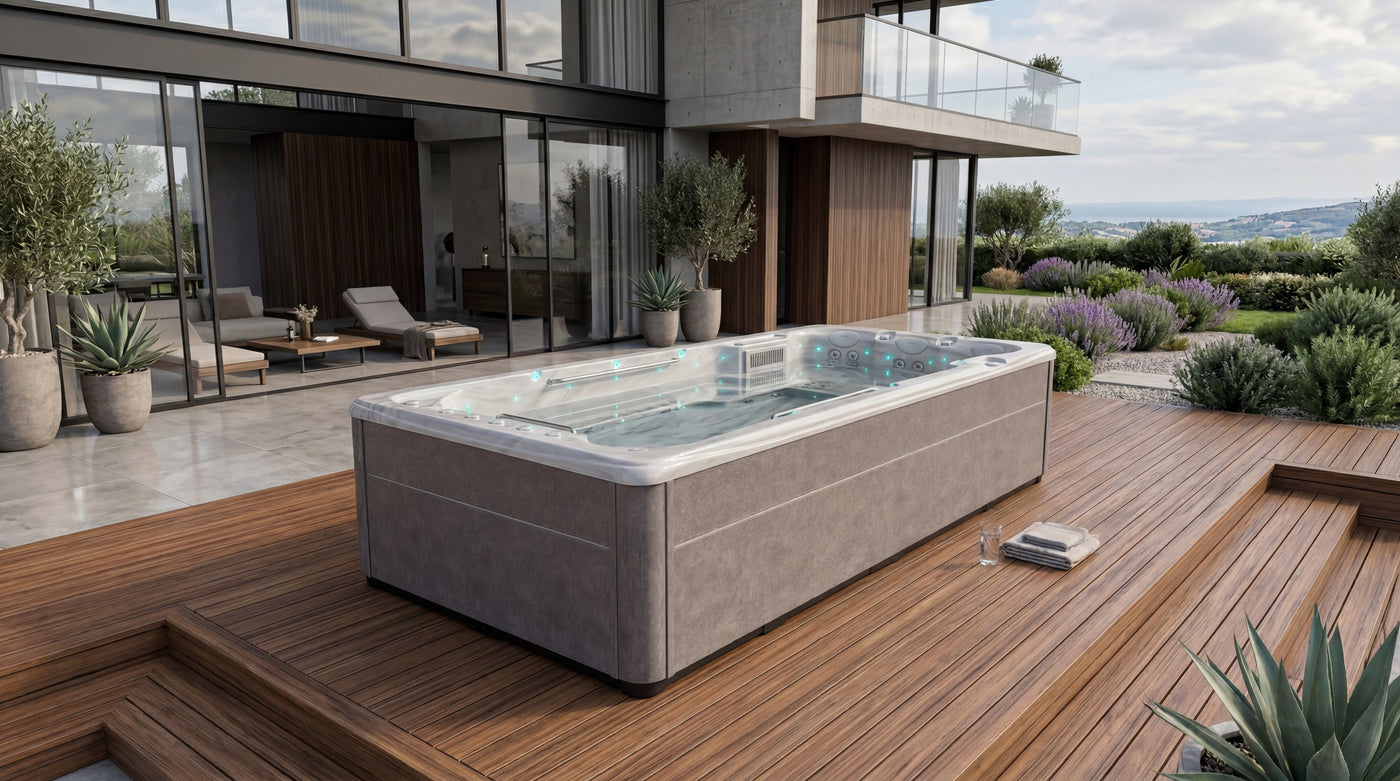

Compare installationsThe same SwimFlow Odyssey, in the same setting and from the same angle. Only its level of integration into the terrace changes.
Freestanding
Same pool, same verified equipment: only the acrylic changes.
Technical data for the SwimFlow Odyssey and commitments relating to its installation.
Starting price, including VAT, excluding delivery package and options.
A dedicated 32 A circuit, protected by a residual-current circuit breaker and installed by a qualified electrician before delivery. SwimFlow is not a Plug & Play model.
SwimFlow weighs 1 000 kg empty and holds 5 913 litres of water: allow for several tonnes when filled, even before bathers enter. A flat, level reinforced concrete slab, sized by a professional, is essential. Also plan access for the crane truck on delivery day.
Yes. It can stand on its slab with its NodoTech cladding, or be installed partly below ground in a prepared recess. In both cases, keep access to the technical panels for maintenance.
Three 3 HP pumps dedicated to swimming create a current in the lane: you swim in place against it, with a grab rail on each side. A 3 HP massage pump supplies the seats separately.
Yes. The pool is heated by a 3 kW heater and supplied with its cover. Consumption depends on the chosen temperature, the region and how long the pool stays covered.
Yes. A dedicated electrical circuit with a suitable residual-current circuit breaker is essential. Most hot tubs require a 230V or 380V supply, depending on the model. Check the required power (in kW) and ask a qualified electrician to prepare the circuit before delivery.
Unless it is a Plug&Play model!
A perfectly flat, stable surface that can support the weight is required. A concrete slab at least 10-15 cm thick is strongly recommended. A reinforced terrace may be suitable, but must be approved by a building professional.
Not necessarily. Hot tubs are usually filled with a garden hose. A nearby water supply can make filling easier, however. A water drainage system (such as a trap or drain grate) is also recommended for emptying.
Allow at least 50 cm around the hot tub for easy access to all technical panels during maintenance. If the hot tub is recessed, provide easily removable access hatches.
Yes, but precautions are needed: effective ventilation, moisture-resistant floor and wall coverings and a water drain in case of overflow. The electrical installation must also be suitable for a humid environment.
Not in most cases, especially for freestanding hot tubs. However, if you are planning a substantial structure (shelter, terrace, equipment room), check with your local council.
The installation itself, excluding preparation, usually takes between 1 and 3 hours. If the electricity, slab and access have been properly prepared, it will be very quick.
Yes. You or a representative must be present to indicate the exact location, check access and confirm correct operation once the hot tub is installed.
